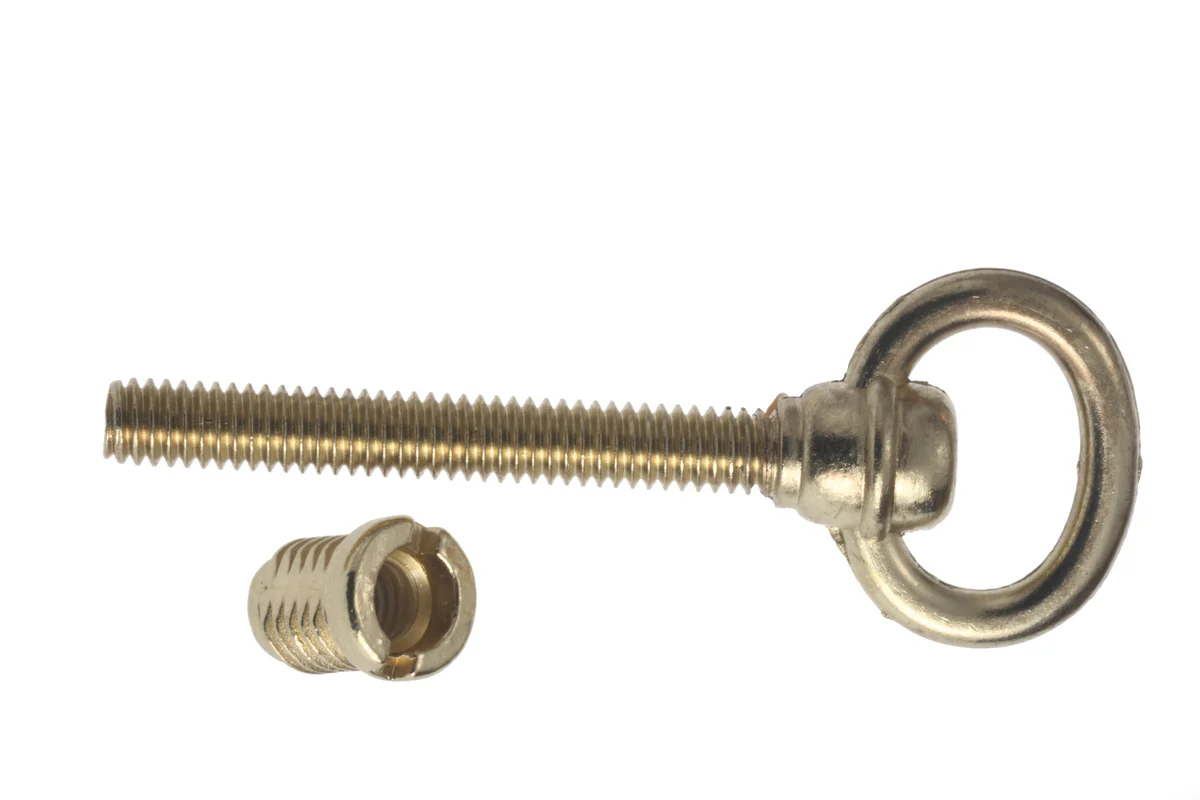

Brass Cheval Mirror Mount Bolts F-567P

F-567P… Brass Cheval mirror mount bolts.  Swivel mirror fastener set, for wishbone mirrors and other swivel type mirrors. Set is enough to do one mirror, which includes washers and bolts with 5/16″ x 18 thread. Bolt is approximately 2-3/8″ long on the threaded side. Mirror support bolt overall length is 3-1/2″ and the brass nuts are 9/16″ long. Comes with 2 bolts, 2 washers and 2 threaded inserts. Outside thread of the insert is 1/2 x 13 thread. The head of the nut is an additional 3/16″ thick, serving as a washer.Our swivel mirror screws hold framed mirrors upright!

Installation: Insert the nut into the mirror frame and pass the bolt through a passage hole in the post. Tighten the bolt to hold the mirror at any desired viewing angle. The bushing requires a ³/₄” diameter drilled hole.

We also carry these same mirror mount bolts in an Antique Brass finish if you would like an already antiqued look!

• Brass Cheval mirror mount bolts
• 5/16″ x 18 thread
• 3-1/2 long overall (2-3/8″ long on the threaded side)
• Sold in sets (enough to do one mirror)
