Full Overlay Brass Glass Door Hinge 26mm Bore Self-Closing H-913010P

Full Overlay Brass Glass Door Hinge – 26mm Bore, Self-Closing H-913010P

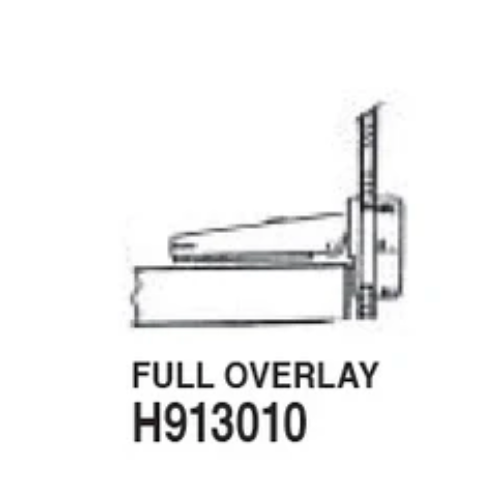

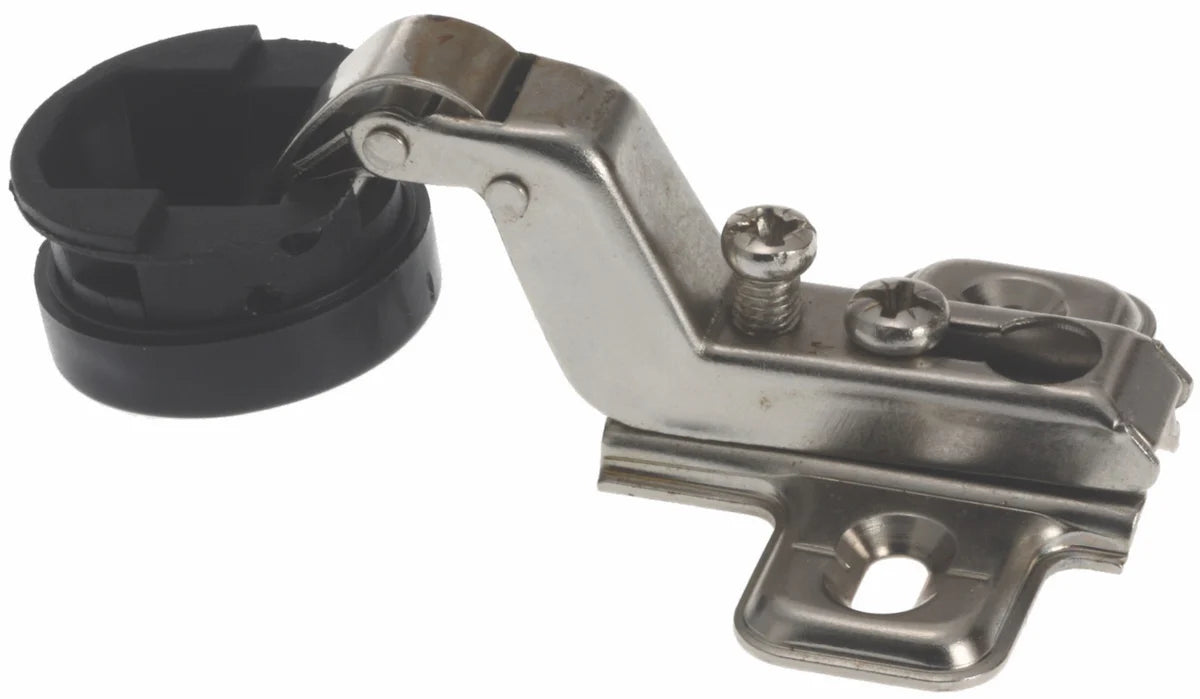

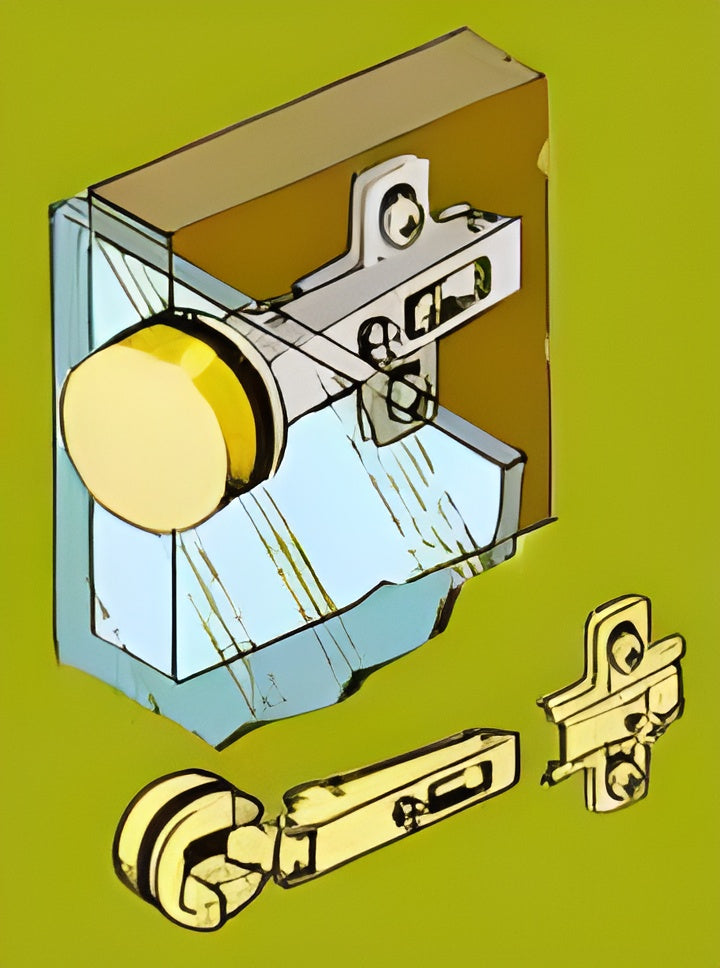

The H-913010P is a full overlay glass door hinge designed for cabinet doors with a 26mm bore hole. Compatible with 3/16" to 1/4" glass, it features a self-closing, self-latching mechanism and 6-way independent adjustability for precise door alignment. The face cap is 1-7/16" diameter ABS nylon finished in polished brass; the hinge body is chrome. Door opens to 94°. Sold individually — not as a pair.

Specifications

• Part Number: H-913010P | SKU: 2560
• Finish: Polished brass face cap / chrome hinge body
• Mount Type: Full overlay
• Bore Requirement: 26mm hole, 7–8mm from glass edge
• Glass Thickness: 3/16" to 1/4"
• Face Cap: 1-7/16" diameter, ABS nylon, polished brass
• Adjustability: 6-way independent
• Opening Angle: 94°
• Closing: Self-closing, self-latching
• Sold: Individually (each)

Common Applications

• China cabinets and display cases with glass doors
• Kitchen cabinet glass door overlays
• Furniture cabinets requiring full overlay glass hinges
• Any 26mm bore glass door installation
