Concealed Drop-Front Desk Flap Hinge, White, 7/16" – HKOMPAC/11W

Concealed Drop-Front Desk Flap Hinge – White, 7/16" for 3/4" Panels

The HKOMPAC/11W is a fully concealed drop-flap hinge in white nylon with steel and brass linkage, engineered for drop-front desks, fall-front cabinets, and fold-down shelves. When closed, it is completely invisible from the exterior — no exposed hardware, no surface mounting. The flap opens to a clean 90° and sits flush with the interior shelf surface.

Specifications

• Part Number: HKOMPAC/11W | SKU: 1106
• Color: White
• Body Material: White nylon with steel & brass linkage
• Door/Panel Thickness: 3/4"
• Hinge Body Thickness: 7/16"

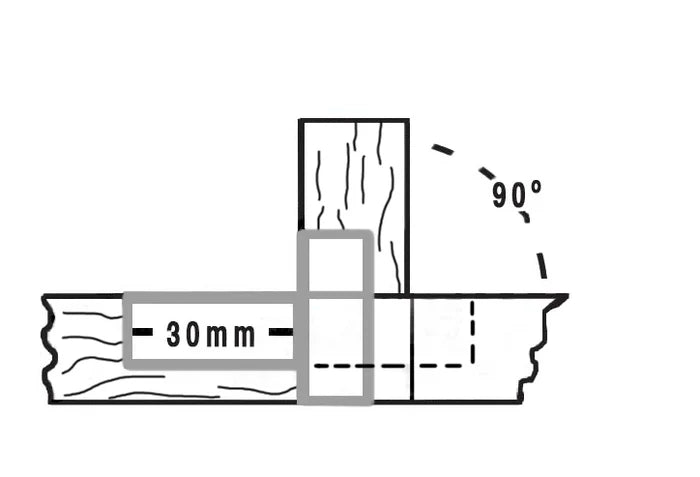

• Bore Hole Required: 30mm (1-3/16") diameter, 5mm from panel edge
• Bit Required: 30mm Forstner or flat boring bit
• Opening Angle: 90°
• Exterior Visibility: Fully concealed
• Sold: Individually (not as pairs)

Common Applications

• Drop-front secretary desks and writing bureaus
• Fall-front cabinet doors and fold-down shelves
• Murphy bed fold-down panels
• Any application requiring a fully concealed flap hinge on 3/4" stock
