- Small Ikea drawer slides
- 8-5/8″ long (219mm)
- 11/16″ high (17mm)
- 3/8″ thick (10mm)
- Double acting
- Sold in pairs (Ordering 1 will do 1 drawer)

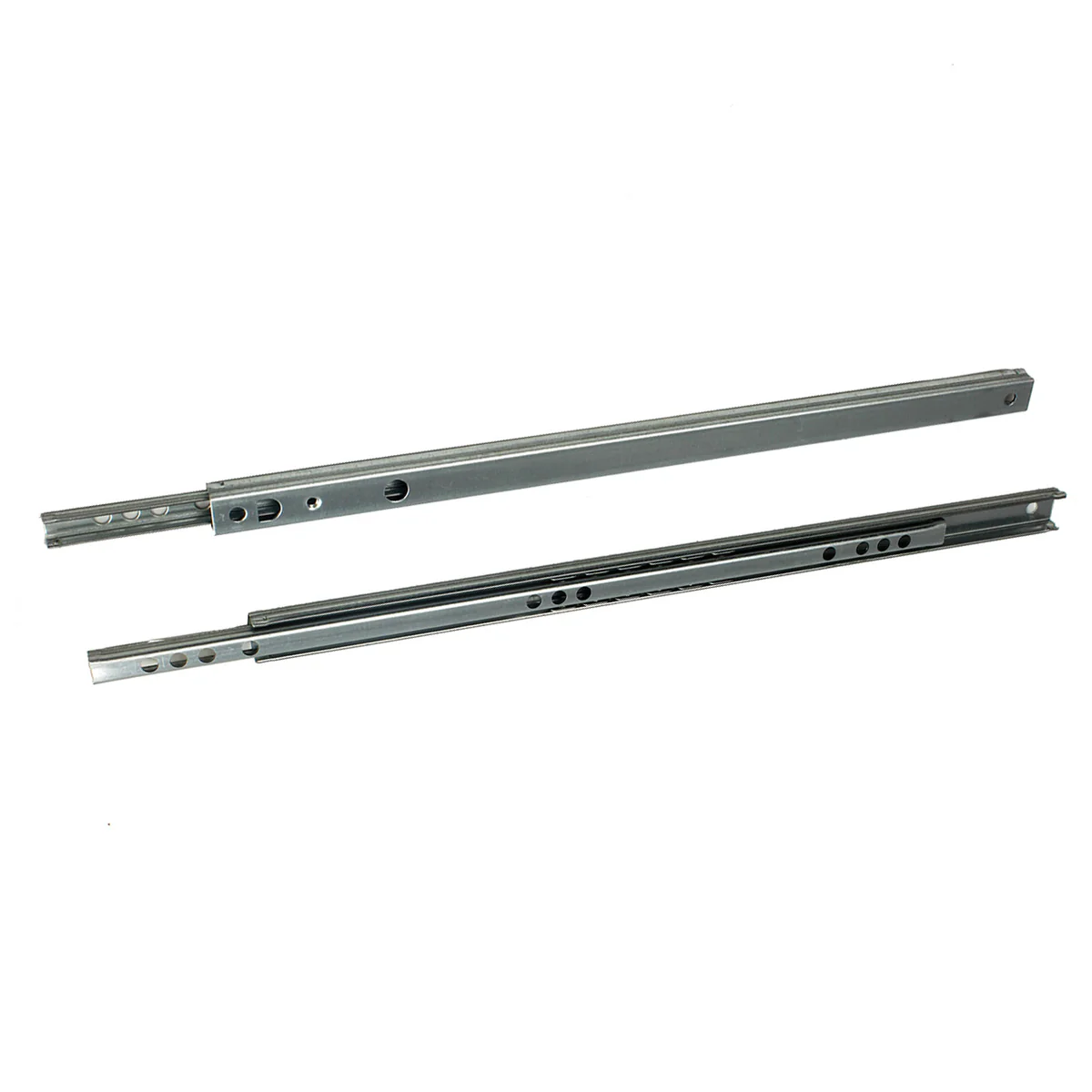

Small Ikea Drawer Slides DSP-8817/219
$6.95
63 in stock
SKU: SB-GW7-00
Category: Ikea Replacement Drawer Slides
DSP-8817/219… Small Ikea drawer slides. Ikea 17mm drawer slide replacements. Pair of double acting small Ikea drawer slides that are 8-5/8″ long x 11/16″ high x 3/8″ thick. Pair does one drawer. Double-acting mini slides have a 22lbs rating. Only 17mm high x 10mm thick (11/16″ high x 3/8″ thick) and 8-5/8″ long when slide is closed. Most IKEA slides slide out in one direction but ours slides in two directions which creates more length of travel. You can use a smaller length slide in this case and gain the same length or more travel.
Precision-rolled steel channels fitted to steel ball-bearings in a nylon carrier insure a vibration free, smooth-as-silk, rolling action for lighter drawer loads, desk trays, shelves, computer pullouts. Especially preferred for drawers with 17mm side grooves. All holes on 32mm centers. May be attached with wood screws from the outside or with M4 machine screws from the inside into pre-tapped holes. No Lefts or rights, so they are reversible. Travel exceeds length of slide. Most often the DSP-8817 series drawer slide will fit most Ikea products!
Note: When all else fails chosing a drawer slide, it is best to choose the closed size which matches what you have.
