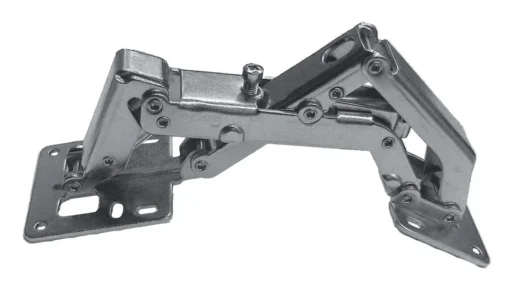

HC-2000150N.. Non bore concealed hinge. Surface mounted concealed hinge with 150 degree door opening, without drilling holes without using mounting plates. Heavy duty case-hardened steel exceeds ANSI-BFMA specifications. 6 way adjustable, lay-on mounting. Nickel plated steel.
Overall length and width of the hinge in the open position is approximately 5-1/2″ x 2″. Screw plate on one end is 2″ x 1-1/2″. Plate on opposite end is 2″ x 1-1/8″. Hinge weight capacities as follows: 2 hinges = 13.22 pounds or 6 kgs, 3 hinges = 24.25 pounds or 11 kgs, 4 hinges = 35.27 pounds or 16 kgs, 5 hinges = 59.91 pounds or 24 kgs. 59.91 pounds is the limit. One of our most popular hinges in stock! Sold individually with mounting hardware.
If this isn’t quite the right size hinge you are looking for, check out our other NON BORE HINGES before you go!
- Non bore concealed hinge
- 150 degree opening
- 6 way adjustable
- 5-1/2″ long
- 2″ wide
- Sold individually
