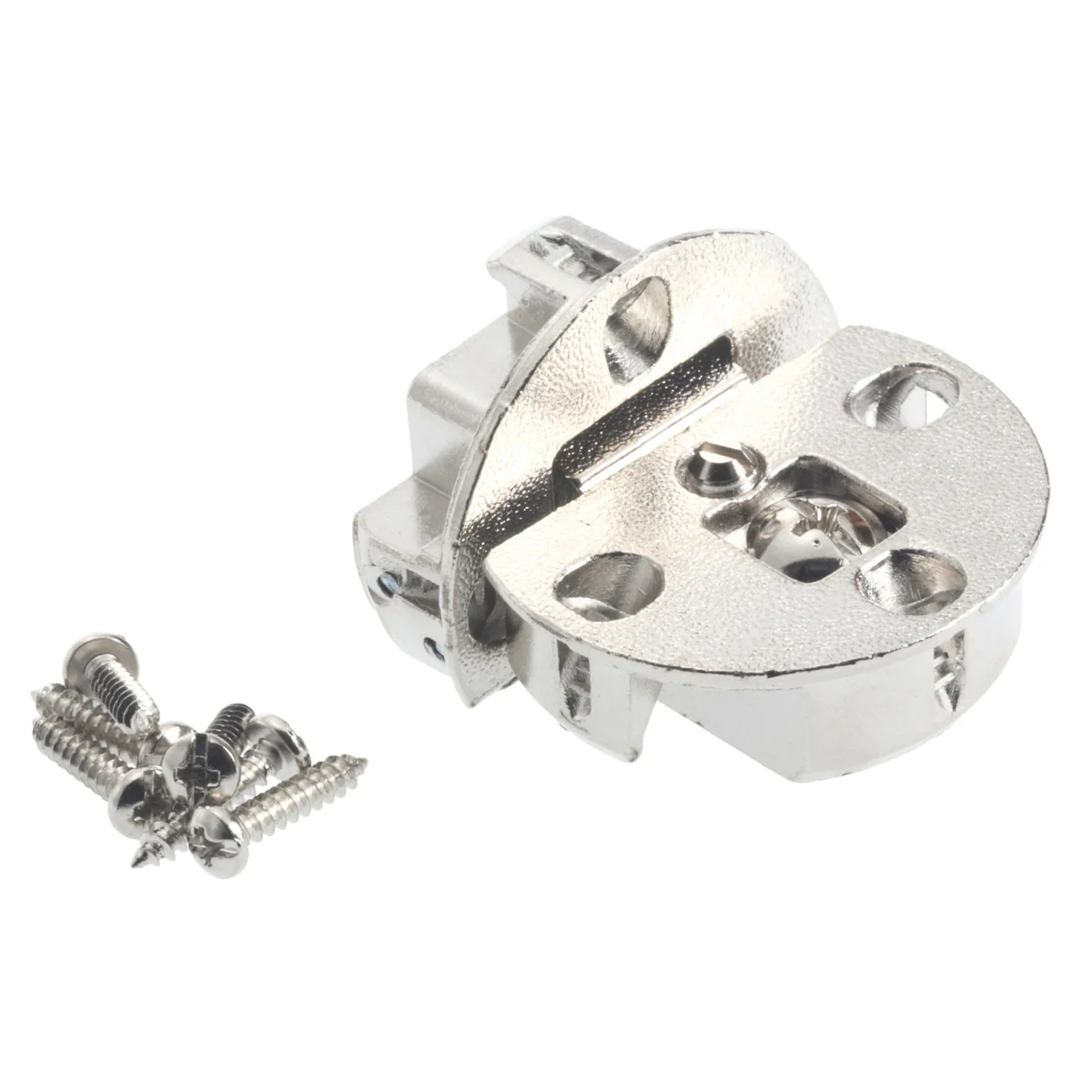

H-32435N … Nickel drop flap hinge. Also referred to as a drop front desk Flap Hinge. Nickel plated finished all metal adjustable drop flap desk hinge. 90 degree opening. Also often used on keyboard trays and for heavier flaps. 6-way adjustable. Overall size is 1-1/2″ wide and is approximately 2-1/4″ long. Detachable for separate mounting on flap and shelf. Flap opens flush with shelf. Lipped edging conceals roughness of bore. No routing or mortising. Drill 35mm (1-3/8″ diameter) hole, by 11mm (7/16″ Deep) and 11/32″ from edge. Boring setup is identical on both parts. Sold individually with mounting hardware.
We also carry these same hinges in a bronze finish that you can see here Drop Flap Hinge H-32435L!
- Nickel drop flap hinge
- Nickel plated metal
- 90 degree opening
- 2-1/4″ long
- 1-1/2″ wide
- Sold individually with screws
Bob Burch (verified owner) –
Only thing I could add is, it would have been nice to have the spec’s for mounting the hinges. I was able to find that on line though. Shipping was pretty fast and the hinges should be just what we need. The rooster latch looks pretty straight forward to mount.
