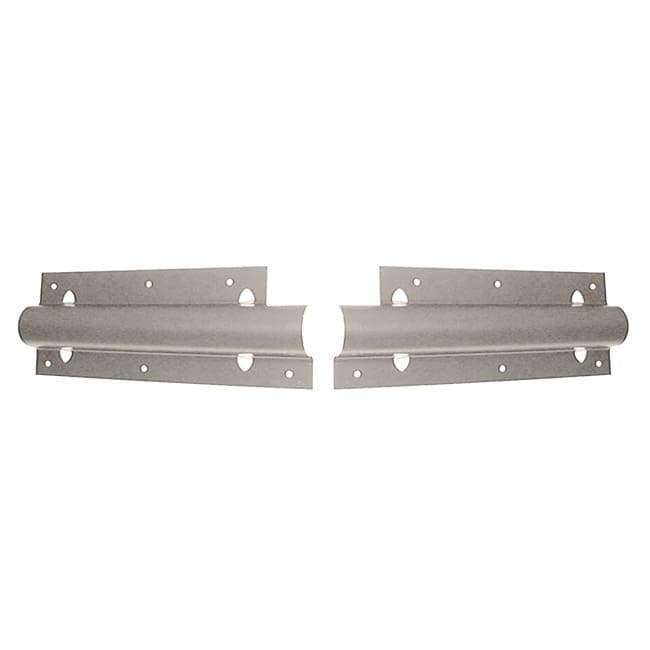

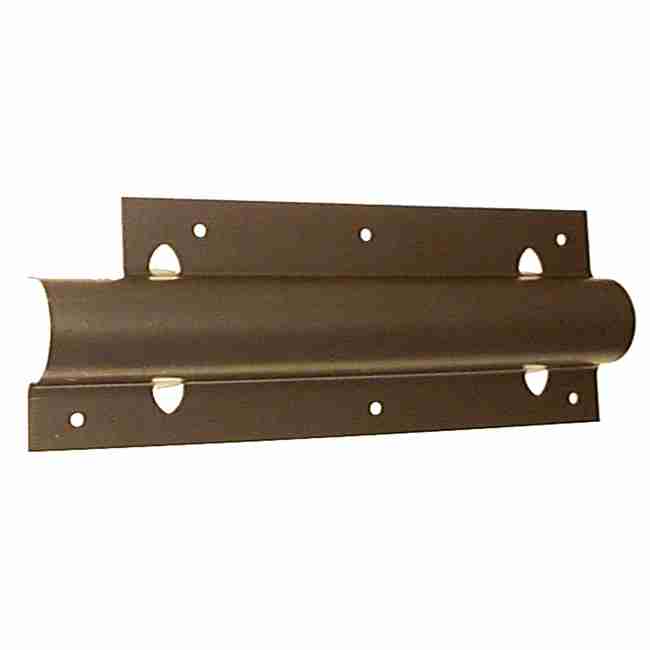

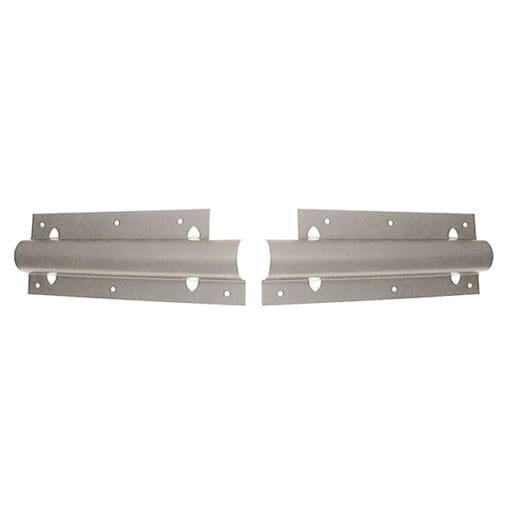

Hoosier Cabinet Mounting Brackets BM-6604

BM-6604… Hoosier cabinet mounting brackets. Pair of right and left Hoosier cabinet side mounting brackets. Fits many other brands of Hoosier type cabinets. Designed to mount the top cabinet to bottom cabinet & allow the porcelain or wood top to slide between the two sections. One pair measures 10-5/8″ long. Vertical clearance is 1-1/4″ and side clearance is 3/4″. When the porcelain top is wider than the base cabinet then side clearance is the maximum additional width allowed by the bracket on each side. HOOSIER kitchen cabinets are the precursors of our hanging kitchen cabinets. They were made primarily in Indiana (hence the name) by several companies, among them The Hoosier, Sellers, McDougall, Napanee, Wilson, Boone and others.

Side clearance denotes the distance a work-top can exceed the cabinet’s side. Vertical clearance denotes the space between the 2 units for the work-top to move in. While typical of the “Hoosier” brand, these Hoosier cabinet mounting brackets can be used on many others. Heavy gauge steel. These brackets have a R.H. and L.H. orientations and are sold in pairs.

Don’t forget to grab your other HOOSIER CABINET HARDWARE before you go!

• Hoosier cabinet mounting brackets
• 10-5/8″ long
• 1-1/4″ vertical clearance
• 3/4″ side clearance
• Sold in pairs (right and left)
