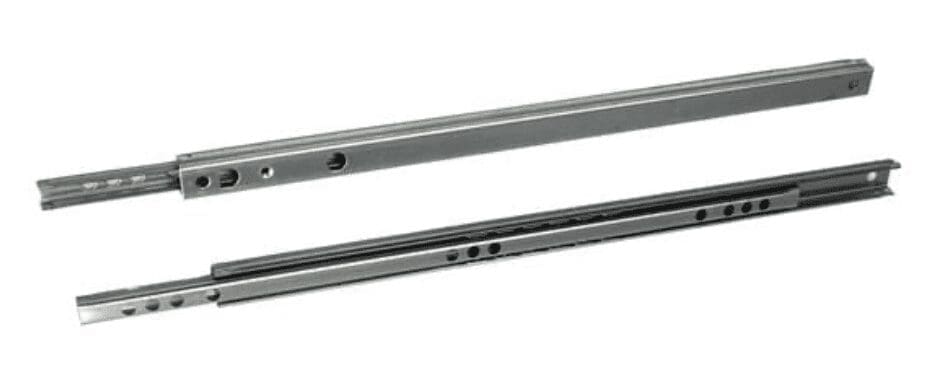

Double Acting Mini Slides DSP-8817/373

DSP-8817/373… Double acting mini slides. These work great for Ikea brand furniture as it fits most of their furniture. Overall measuring 14-3/4″ long x 11/16″ high x 3/8″ thick. One pair does one drawer. Double-Acting mini slides with a 22lb rating. Only 17mm high x 10mm thick (11/16″ high x 3/8″ thick) and 14-3/4″ long when slide is closed. Most IKEA slides slide out in one direction but ours slides in two directions which creates more length of travel.

Precision-rolled steel channels fitted to steel ball-bearings in a nylon carrier insure a vibration free, smooth-as-silk, rolling action for lighter drawer loads, desk trays, shelves, computer pullouts. Especially preferred for drawers with 17mm side grooves. All holes on 32mm centers. May be attached with wood screws from the outside or with M4 machine screws from the inside into pre-tapped holes, screws are not supplied. There are no lefts or rights on these double acting mini slides, these are reversible. Travel exceeds length of slide. Sold as a pair.

Note: When looking for replacement drawer slides, it is best to choose whichever drawer slide is closest in length to the drawer slide you are replacing when it is closed.

Most often, all of our DSP-8817 series drawer slide will fit most Ikea products!

Check out our large selection of other DRAWER SLIDES if these aren’t what you are looking for!

• Double acting mini slides
• 14-3/4″ long (373mm)
• 11/16″ high (17mm)
• 3/8″ thick (10mm)
• Sold as a pair
