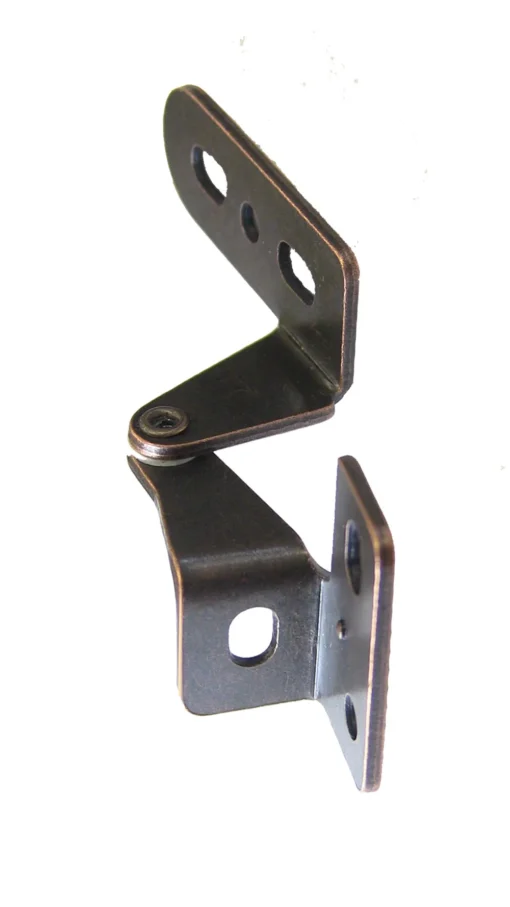

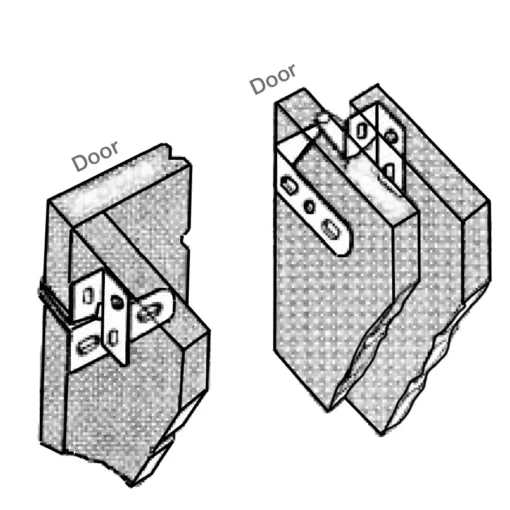

HJC-380L… Door pivot hinge. Bronze plated steel, also referred to as through the door pivot hinges. These open 270 degrees with 5/8″ thick door or the open 255 degrees with a 3/4″ thick door. Extra heavy 3/32″ thick steel for heavy doors. Semi invisible, only the tip shows. Cut an angled 7/32″ slot through the door, for installation. These are paired as left and rights. A replacement for some NICO hinges. Measurements as follows: Cabinet plate is 11/16″ wide x 1/2″ long (Screw mounting holes at 7/8″ on center). Door plate is 3/4″ wide x 2″ long (Screw mounting holes at 1″ on center. Sold as a pair with matching screws (one left and one right).
Not the pivot hinge you are looking for? Check out our large selection of we carry here and you’ll be sure to find what you are needing. PIVOT HINGES
- Door pivot hinge
- Bronze plated steel
- Cabinet plate is 11/16″ wide x 1/2″ long
- Door plate is 3/4″ wide x 2″ long
- Sold as a pair (1 left & 1 right)
